Why a Ladle Does Not Open Freely, and What to Check First
Free opening rate is one of the cleanest indicators of ladle practice health. Here are the four causes behind most failures, and the order to check them in.
What free opening rate actually measures

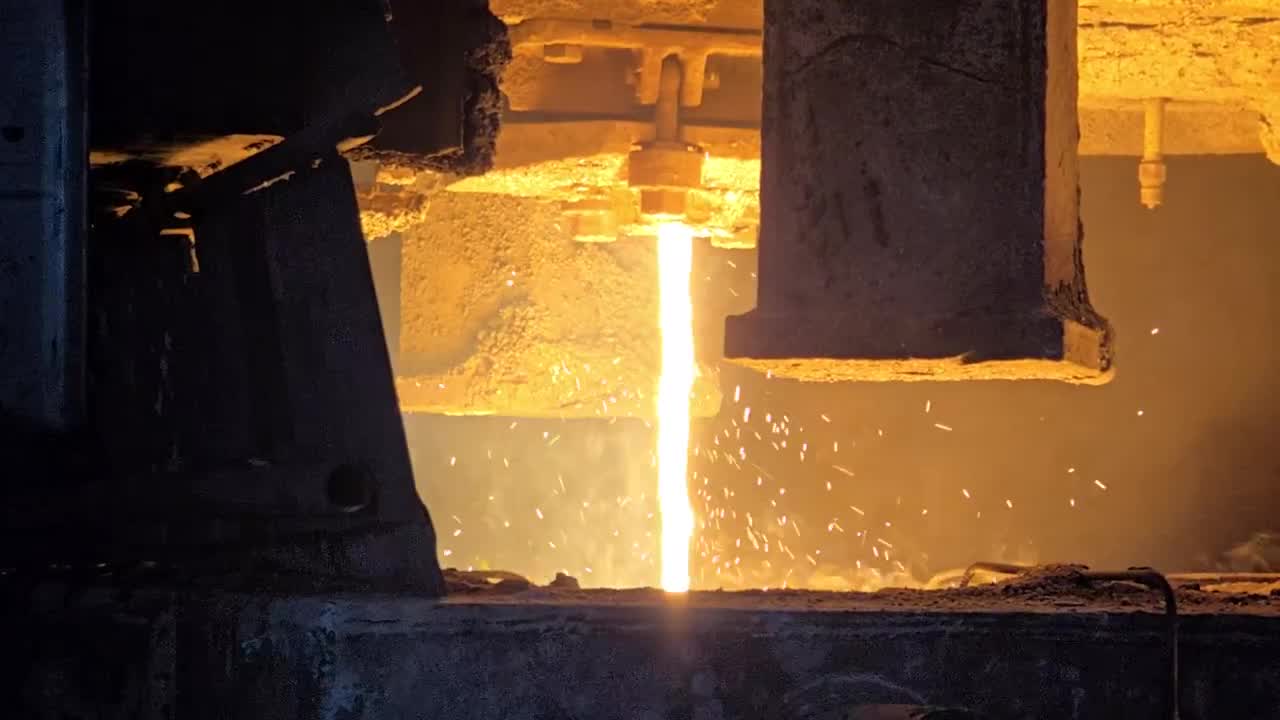

Free opening rate is the percentage of heats where the ladle opens under gravity alone when the slide gate is actuated, with no oxygen lancing needed to clear the nozzle. A well-matched compound in a stable practice typically runs at 90–98%.
It is worth tracking as a standalone number because it is unusually honest. Unlike most consumable metrics it is binary per heat, it cannot be argued with, and it carries direct cost: every lanced heat adds turnaround time, consumes oxygen, erodes the well block and nozzle, and puts an operator in front of an open stream.
If your rate has drifted below the high eighties, the cause is almost always one of four things. Check them in this order — the cheapest and most common first.
1. Moisture pickup in storage
This is the most frequent avoidable cause, and the easiest to dismiss. Nozzle filling compound is supplied at a controlled moisture level — ours at 0.30% maximum — but the material is hygroscopic. A bag left open on a humid shop floor overnight will absorb enough moisture to change its behaviour completely.
Wet compound sinters more readily, because the moisture promotes early bonding between particles once heat arrives. The result is a solid plug where you wanted free-flowing granules.
What to check: are bags stored sealed, off the floor, and under cover? Is an opened bag used within the shift, or does it sit until tomorrow? During monsoon, does storage practice change at all? If the answer to the last question is no, and your free opening rate drops seasonally, you have found your cause.
2. Particle size distribution drift
Particle size matters as much as chemistry, and it fails in both directions.
Too fine and the compound packs densely in the nozzle. Dense packing conducts heat efficiently into the bed, the bed reaches sintering temperature through its full depth, and it fuses into a rigid bridge.
Too coarse and the voids between particles are large enough for liquid steel to infiltrate the top of the bed. That steel freezes in place and forms exactly the plug the compound exists to prevent.
A controlled band — typically 0.10 to 1.50 mm — balances the two. Drift usually comes from a supply change, segregation during transport, or handling that breaks down the coarse fraction. If free opening fell after a new batch or a new supplier, this is the first thing to test.
3. Holding time and superheat beyond what the grade was chosen for
Sintering is a function of temperature and time. A compound selected for a 45-minute hold will behave differently on a 90-minute hold, and a shop that has quietly extended its average holding time — through caster delays, sequence changes, or scheduling — may have moved outside the grade's design window without anyone changing anything on purpose.
High superheat compounds the effect. The bed sees more heat, sooner.
What to check: has your average heat-to-cast time changed over the past few months? If it has, the compound may simply need a higher-refractoriness formulation rather than any change in practice. This is a grade selection problem, not an operational failure.
4. Filling practice
Three habits cause trouble here, and all of them look like diligence.
Ramming the compound. Compaction feels thorough but increases thermal conduction into the bed and raises sintering risk sharply. The compound should be poured to fill the well, not packed.
Filling a nozzle that is not clean. Residue from the previous heat gives sintering a head start.
Underfilling. A partially filled well leaves space for steel to enter and freeze above the compound bed.
These are worth watching directly rather than asking about. Practice as described and practice as performed often differ, particularly across shifts.
A practical diagnostic order
When a shop asks us why free opening has dropped, we work through it like this:
- Did it change suddenly or gradually? Sudden points to a batch, a supplier change, or a new crew. Gradual points to creeping holding times or seasonal humidity.
- Does it correlate with a shift? If one shift is markedly worse, it is filling practice, not material.
- Does it correlate with weather? Monsoon-linked drops are moisture, essentially always.
- Does it correlate with long-hold heats? Then it is a grade-versus-duty mismatch and the formulation needs revisiting.
Four questions will usually isolate the cause before anyone opens a specification sheet.
When the compound genuinely is the problem
Sometimes the practice is sound and the material is wrong for the duty. Chromite-based compounds are the workhorse because chromite offers high refractoriness with low reactivity toward ladle slag and steel at normal holding temperatures. Silica sand is blended in to tune bulk density, flow and cost. Carbon can be added to further reduce wetting, at some carbon-pickup risk for ultra-low-carbon grades.
Where a shop routinely holds long or taps hot, the answer is a blend shifted toward higher refractoriness — not a standard grade expected to absorb the difference. That is a formulation decision, and it should be made from your actual holding-time and superheat data rather than from a catalogue.
